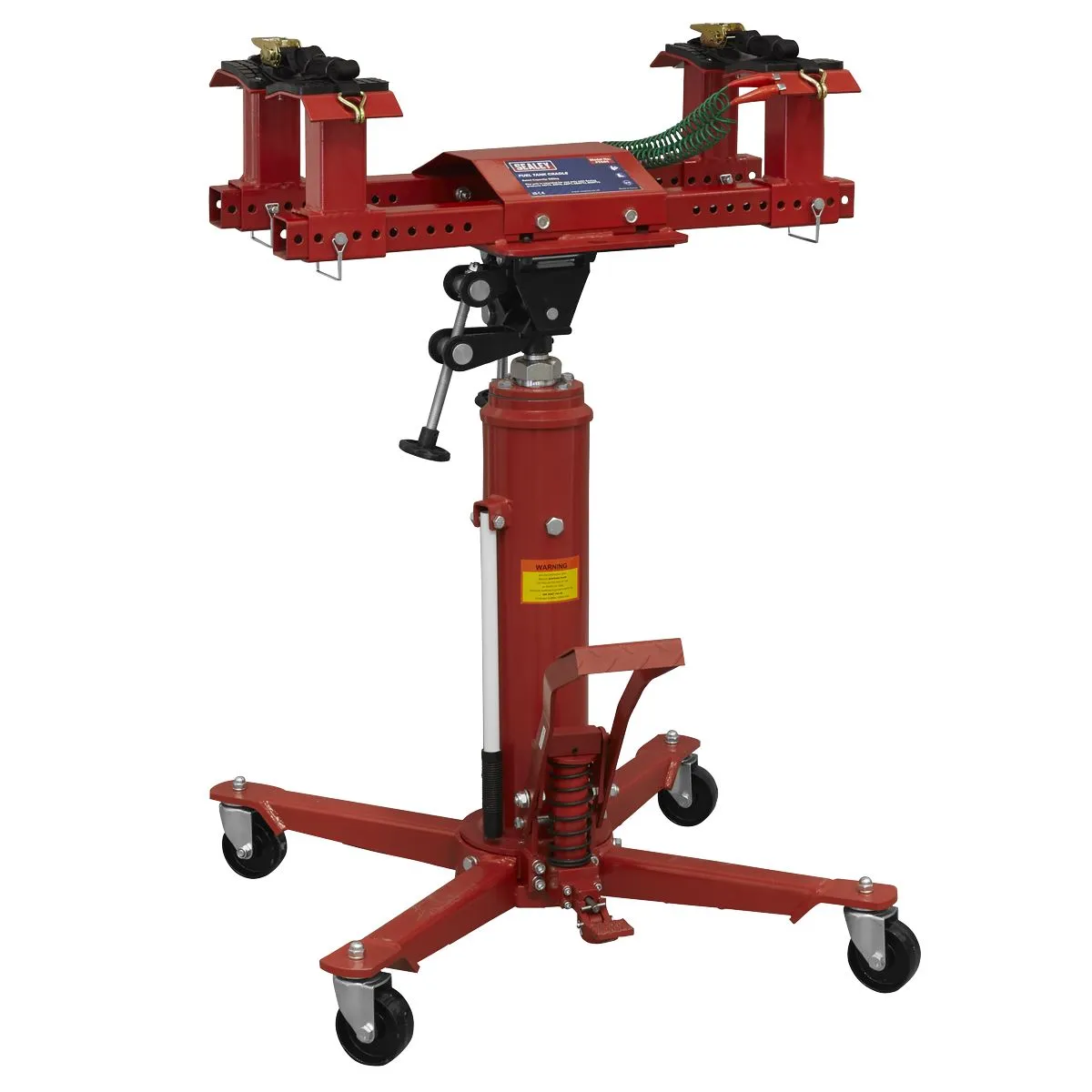

TELESCOPIC RAM - A two-stage ram reduces the clearance.

HIGH SPEED LIFT - Quick lift, when unladen, reducing the foot pumps required to meet the load. But when laden slows to give control and accuracy.

FOOT PEDAL OPERATION - Keeping hands free for fixings and adjustments.

SAFE - Spring loaded dead man's safety release control reduces the risk of inadvertent lowering.

HIGHLY MANOEUVRABLE - Large, smooth running castors, make positioning quick and easy.

LARGE CAPACITY - Made for automotive and light commercial fuel tanks up to a capacity of 40 gallons (tank must be emptied before handling).

VERSATILE - Four adjustable support arms can be easily positioned to fit many shapes and sizes.

PROTECTION - Rubber pads protect the tank while being supported.

SAFE - Includes two load restraint straps.

EASY ASSEMBLY - The adaptor can be fitted and removed from the transmission jack with ease as required.

Specification:

• Model No FTC800COMBO
• Base Size: 1046 x 1046mm
• Brand: Sealey
• Capacity: 800TTJ - 800kg and FTC01 - 565kg
• Fixed/Adjustable Saddle: Adjustable
• Maximum Saddle Height: 1920mm
• Minimum Saddle Height: 960mm
• Nett Weight: 112kg
• Optional Accessories: N/A
• Pump Strokes to Maximum Height: N/A
• Ram Extensions: 2
• Saddle Adjustment - Left-to-Right: N/A
• Saddle Tilt - Backward: 40°
• Saddle Tilt - Forward: 15°

• Material Safety Data Sheet:
