• For measurement of coolants and antifreezes, battery fluid condition and screenwash antifreeze.
• Measuring Range: Ethylene Glycol -50~0°C; Propylene Glycol -50~0°C; Battery Fluids 1.10~1.40kg/l

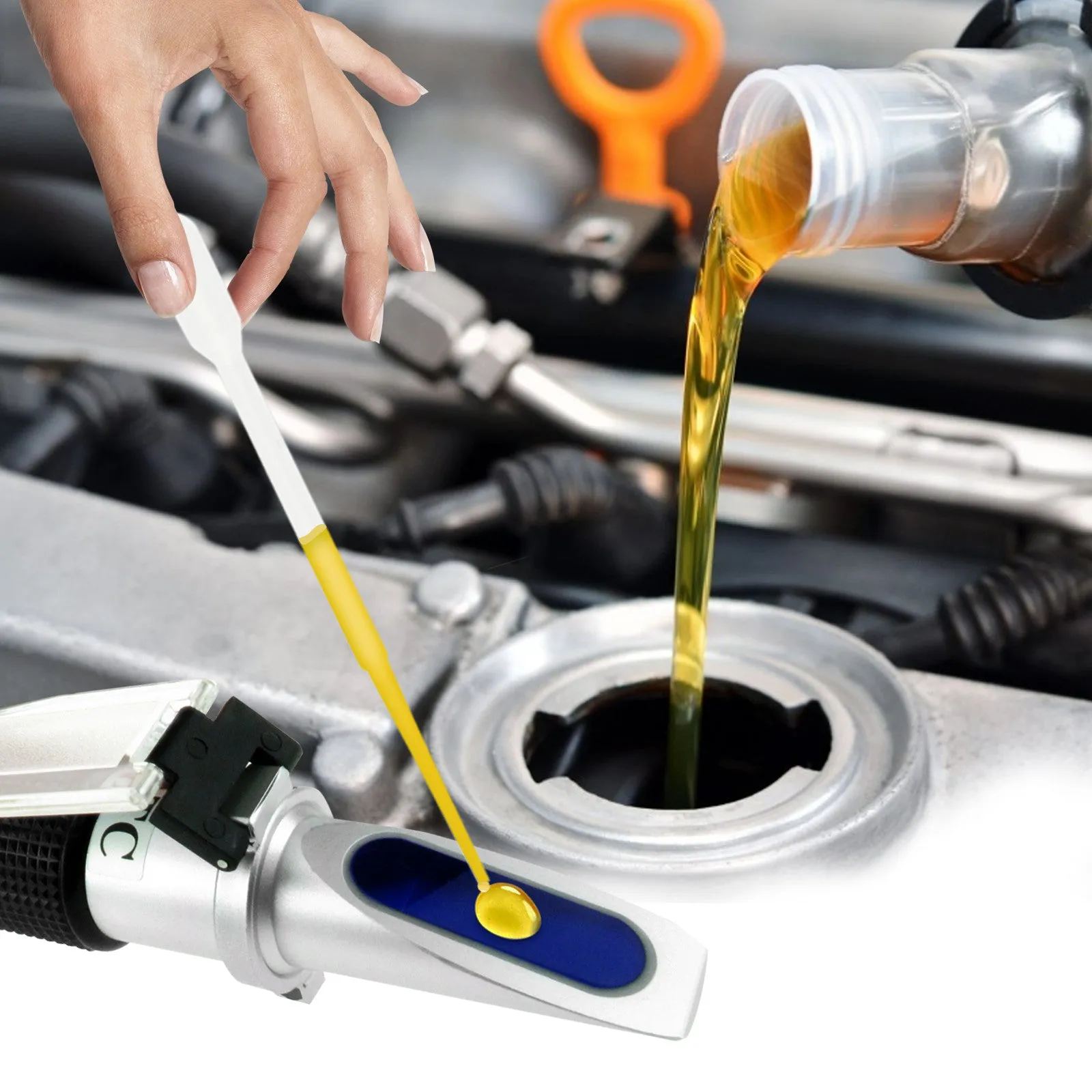

• Apply for measuring of cars, trucks and buses operating fluids(windscreen washer fluids, antifreezes and coolants, electrolyte).
• ATC: Automatic Temperature Compensation Range 10~30°C
• Sturdy and light weighted aluminum body

---

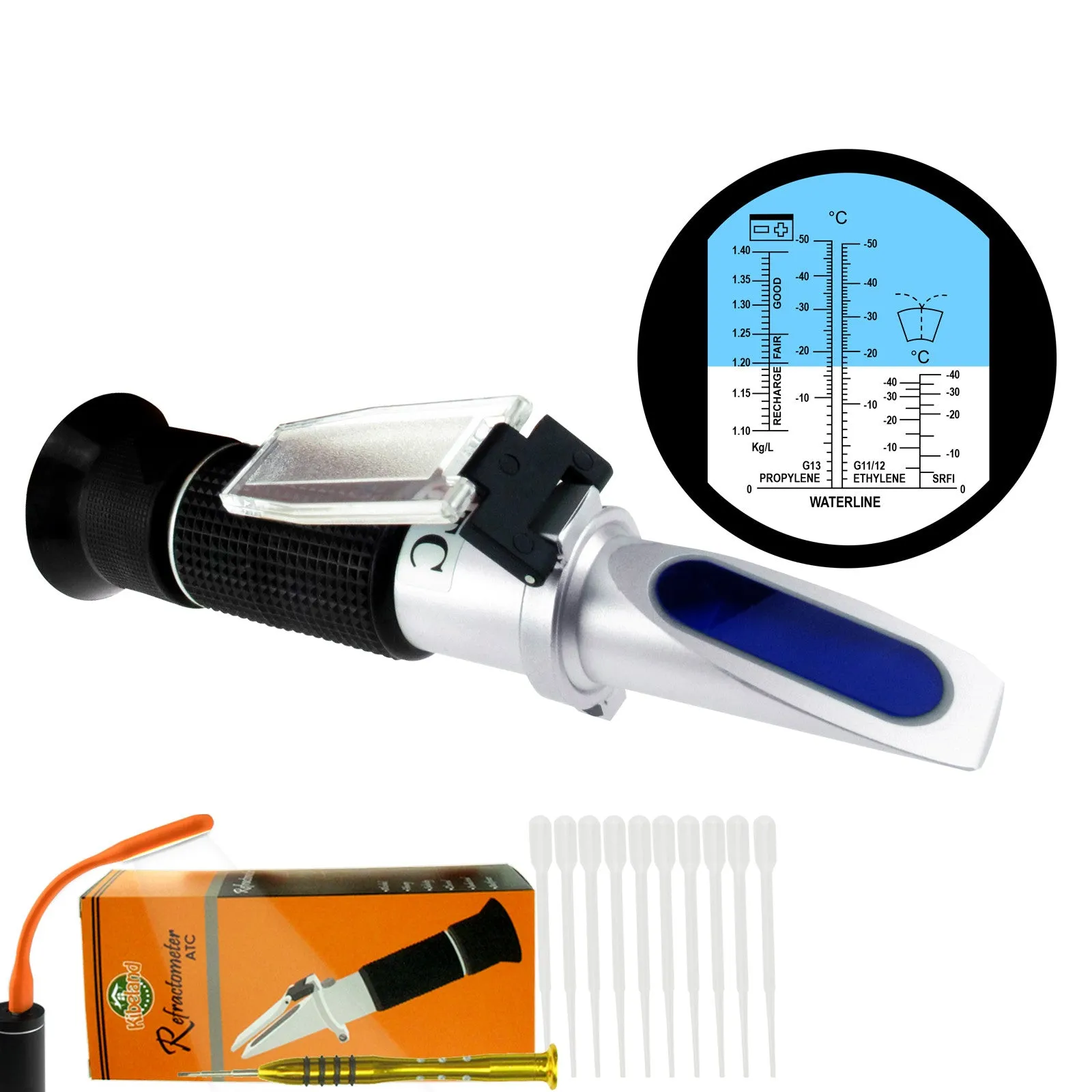

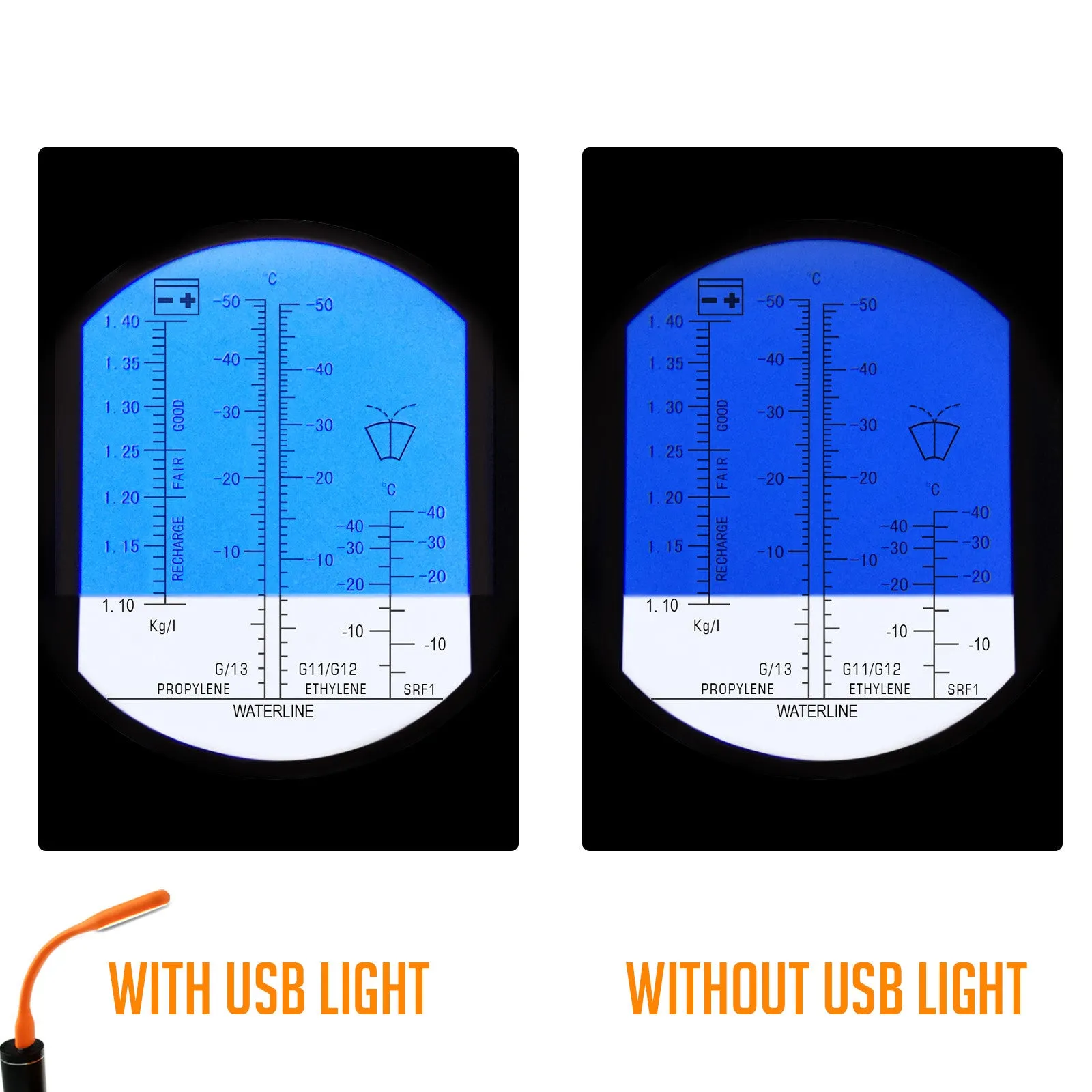

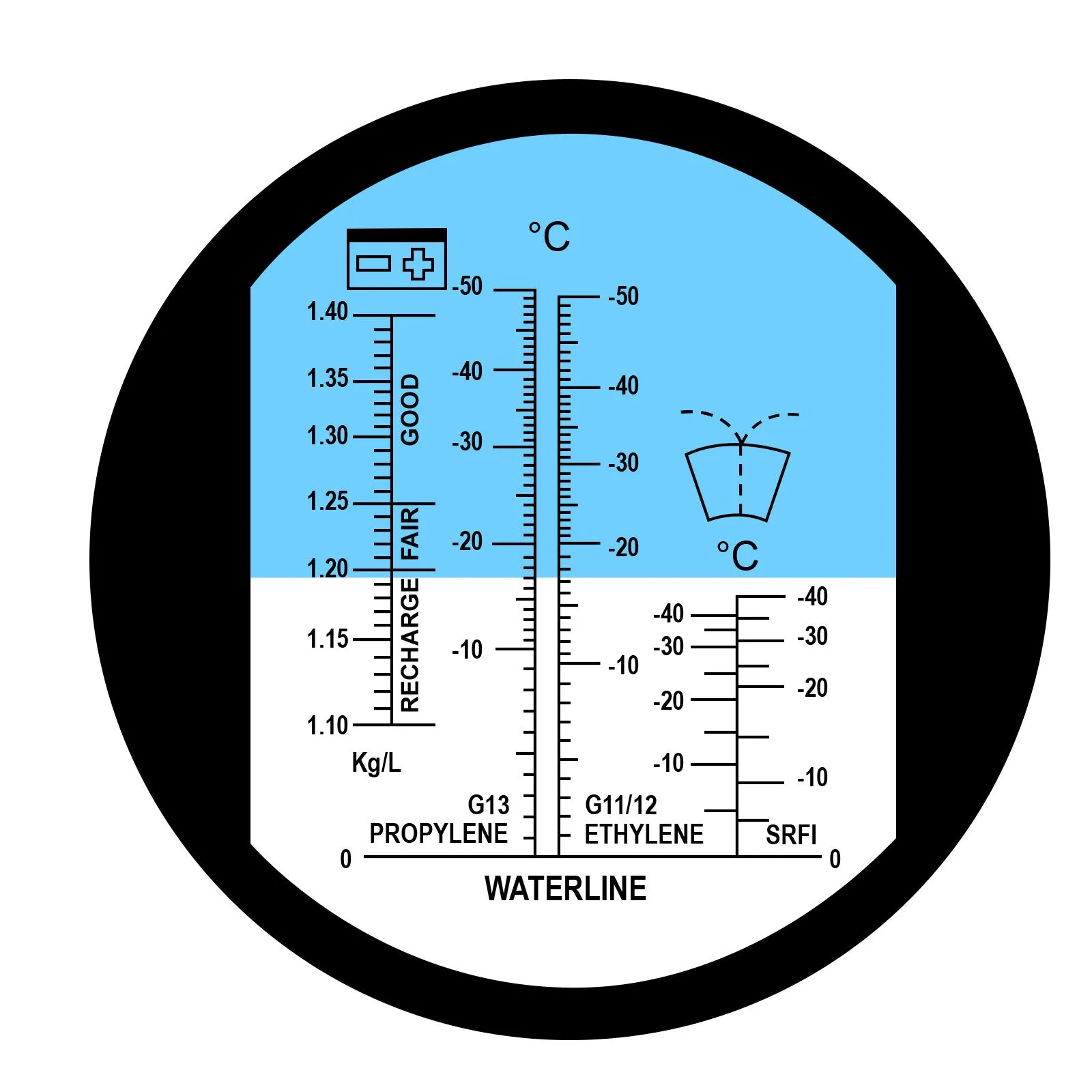

This optical refractometer is designed for measuring of following characteristics:

* Scale to determine the battery electrolyte condition
Scale range: 1.10~1.40kg/l
Resolution: 0.01kg/l
Scale range & Result
1.10 to 1.20 kg/l - the battery is discharged (RECHARGE)
1.20 to 1.25 kg/l - the battery is partially discharged (FAIR)
1.25 to 1.40 kg/l - the battery is charged (GOOD)

* Scale G13 - to determine the freezing point of propylene glycol-based antifreezes
This scale is suitable for measuring of freezing point of propylene glycol-based coolants and antifreezes. The scale can be also used for measuring of propylene glycol-based antifreezes in solar thermal collectors circuits or heating pumps and chillers.
Range of scale G13(Propylene Glycol): -50°C~0°C
Resolution: 1°C

* Scale G11/G12 - to determine the freezing point of ethylene glycol-based antifreezes
This scale is designed for measuring of the freezing point ethylene glycol-based coolants and antifreezes like G11 and G12 coolants.
Range of scale G11/G12(Ethylene Glycol): -50~0°C
Resolution: 1°C

* Scale to determine the freezing point of ethanol-based screen washes
Scale range: -40~0°C
Resolution: 5°C

* Scale SRF1 - Scale to determine the freezing point of isopropanol-based screen washes
Scale range: -40~0°C
Resolution: 5°C


SPECIFICATIONS:

Reference temperature 20°C
Automatic Temperature Compensation (ATC: 10~30°C)

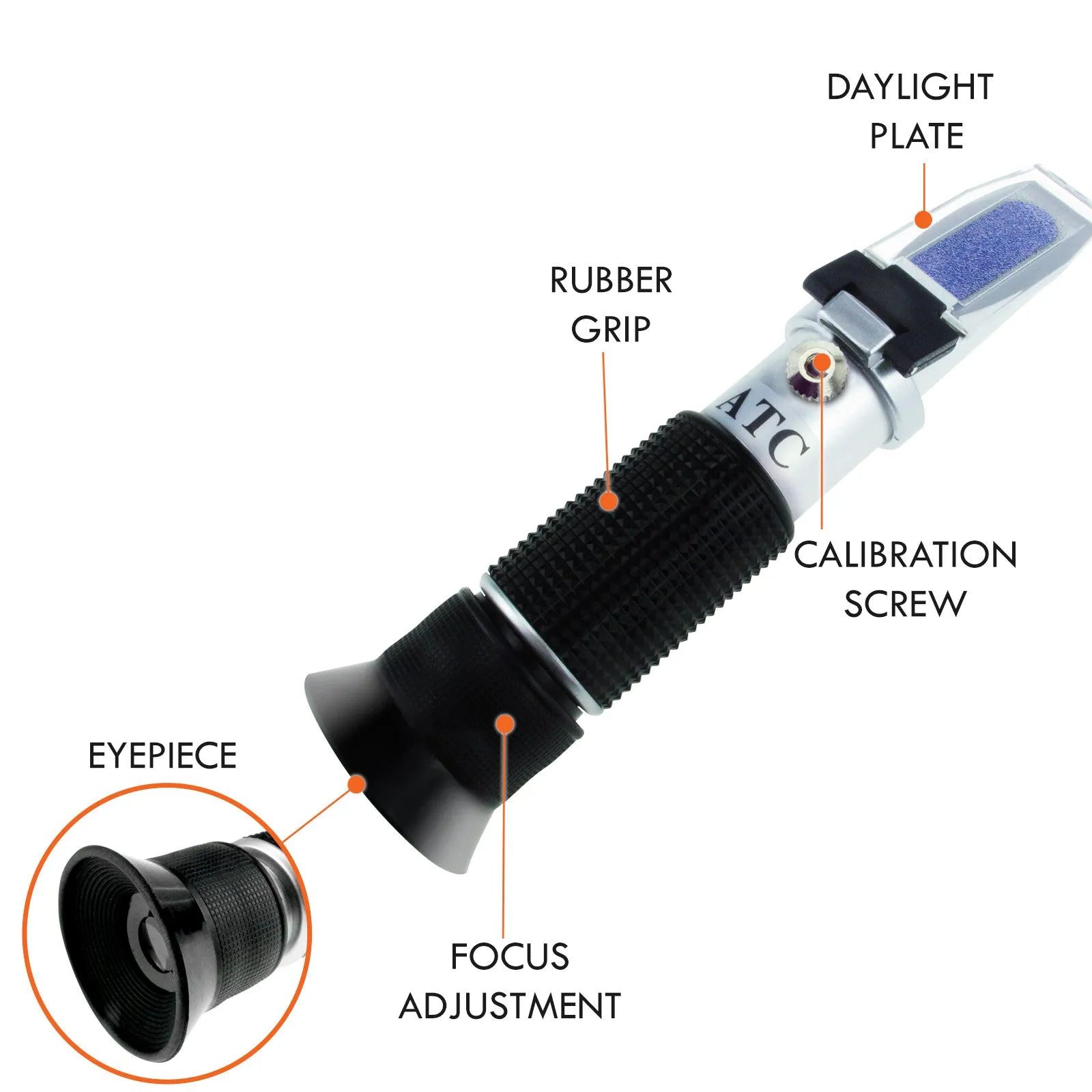

Focus possibility
Item Weight: 95g
Length: 160mm

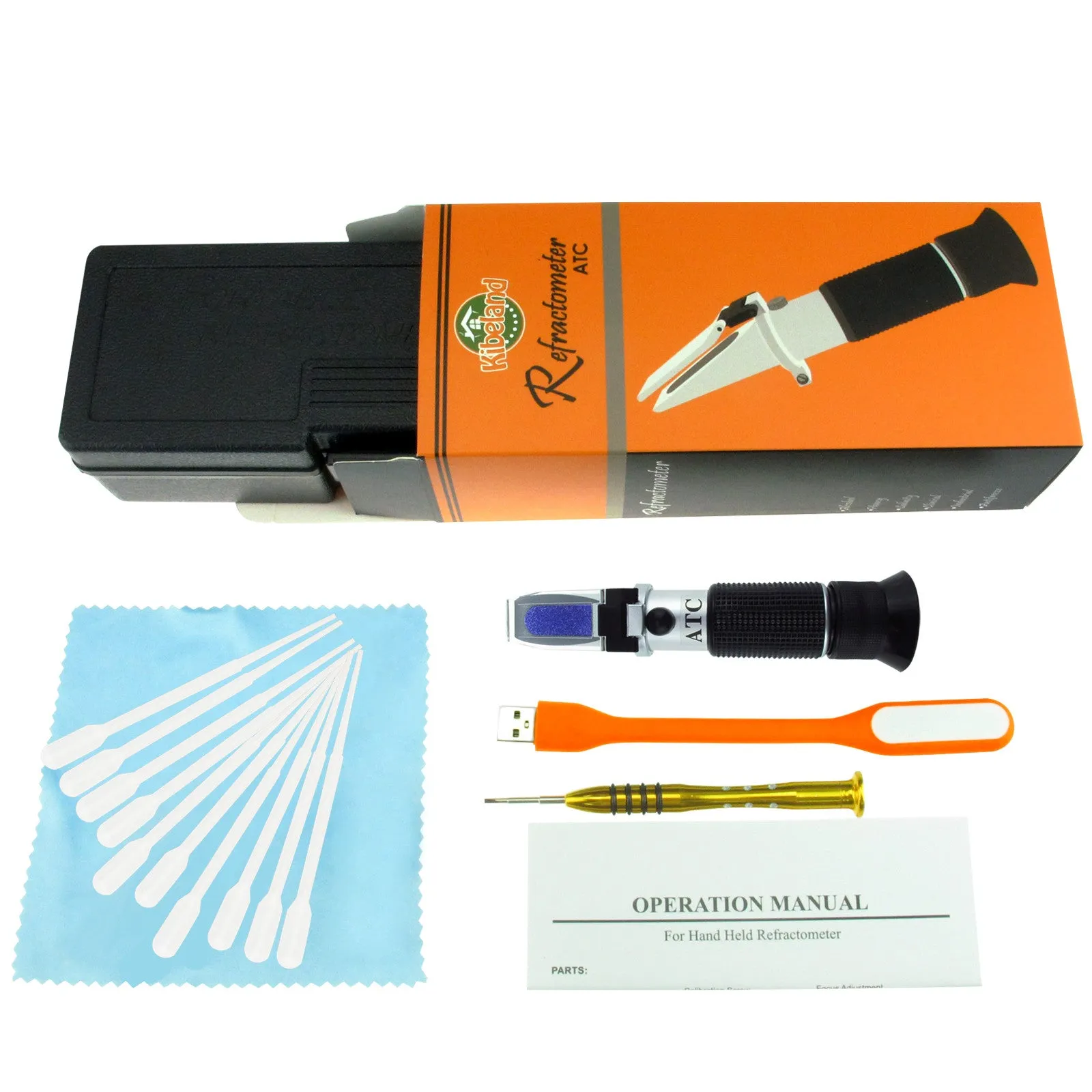

PACKAGE INCLUDES:

Refractometer x 1
Distilled Water x 1
Pipette x 10

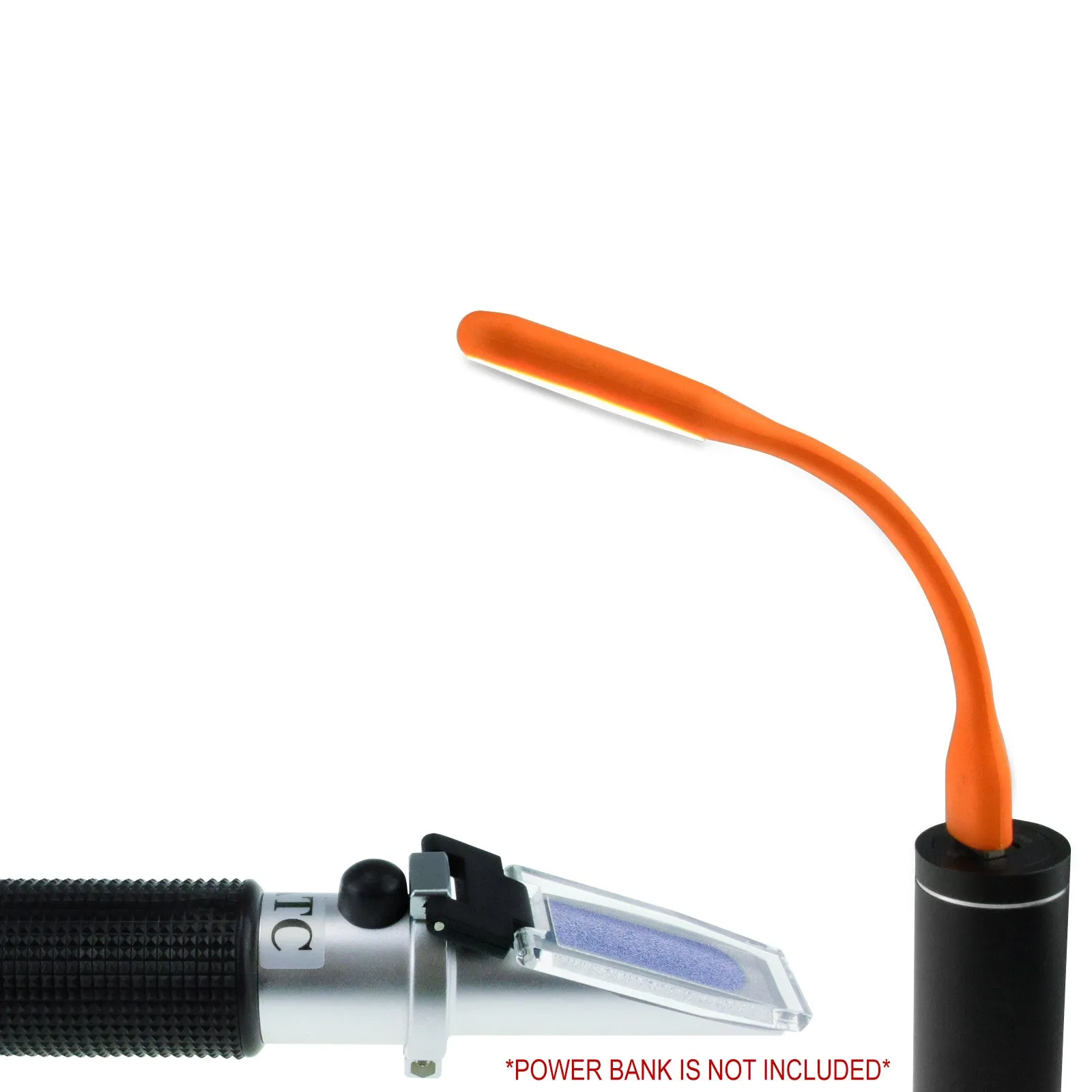

Mini USB Light x 1

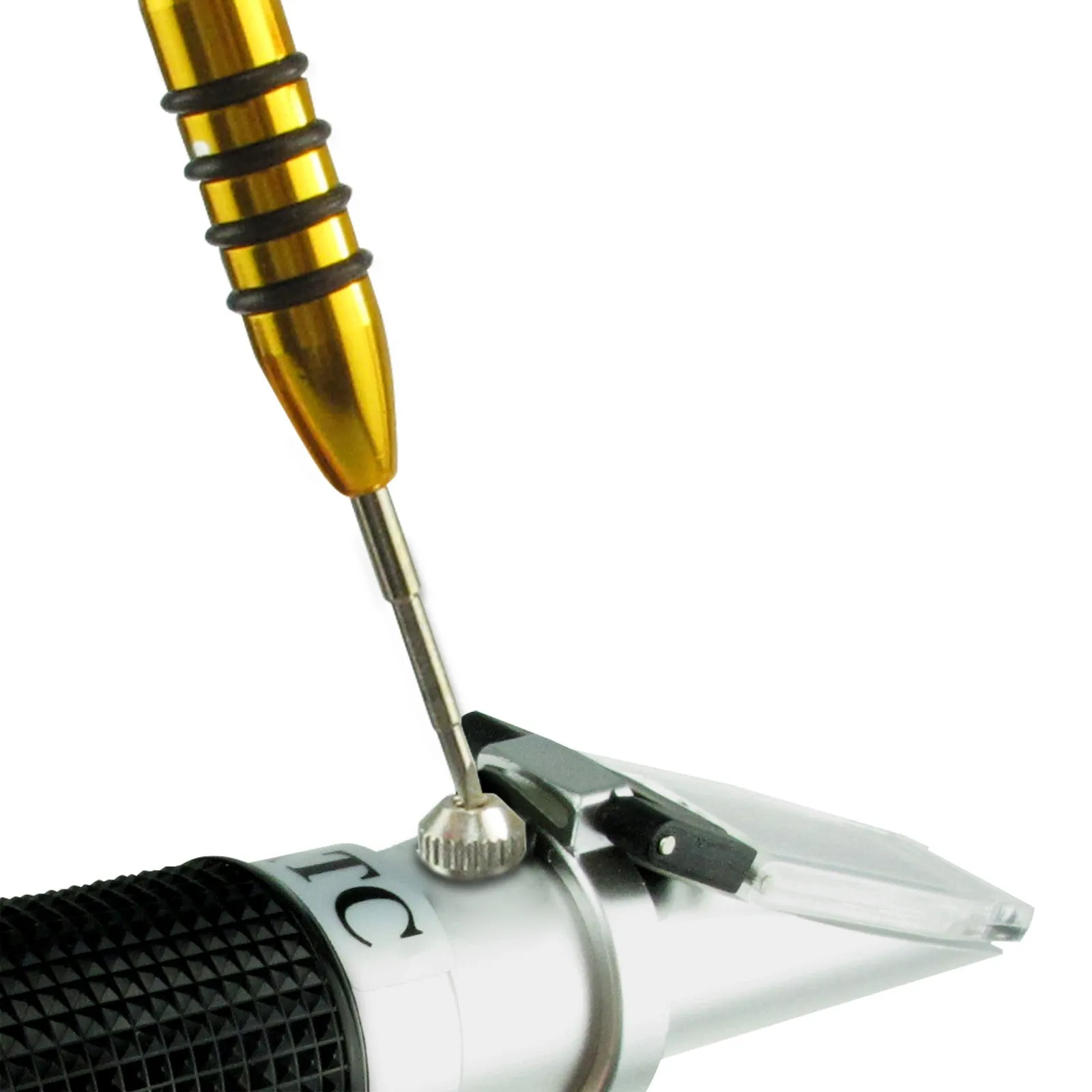

Screwdriver x 1
Cleaning Cloth x 1
User Manual x 1
Firm Plastic Case x 1
Paper Box x 1
