Onga Balboa Spa Bath Pump Touchpads - Obsolete - These have been completely discontinued by the manufacturer. There is no other alternative than to replace the pump and touchpad. For pumps up to 1.0hp use the , for pumps 1.25-1.5hp use the . Any alternative will require minor replumbing and lead changed.
Archived Listing Below:

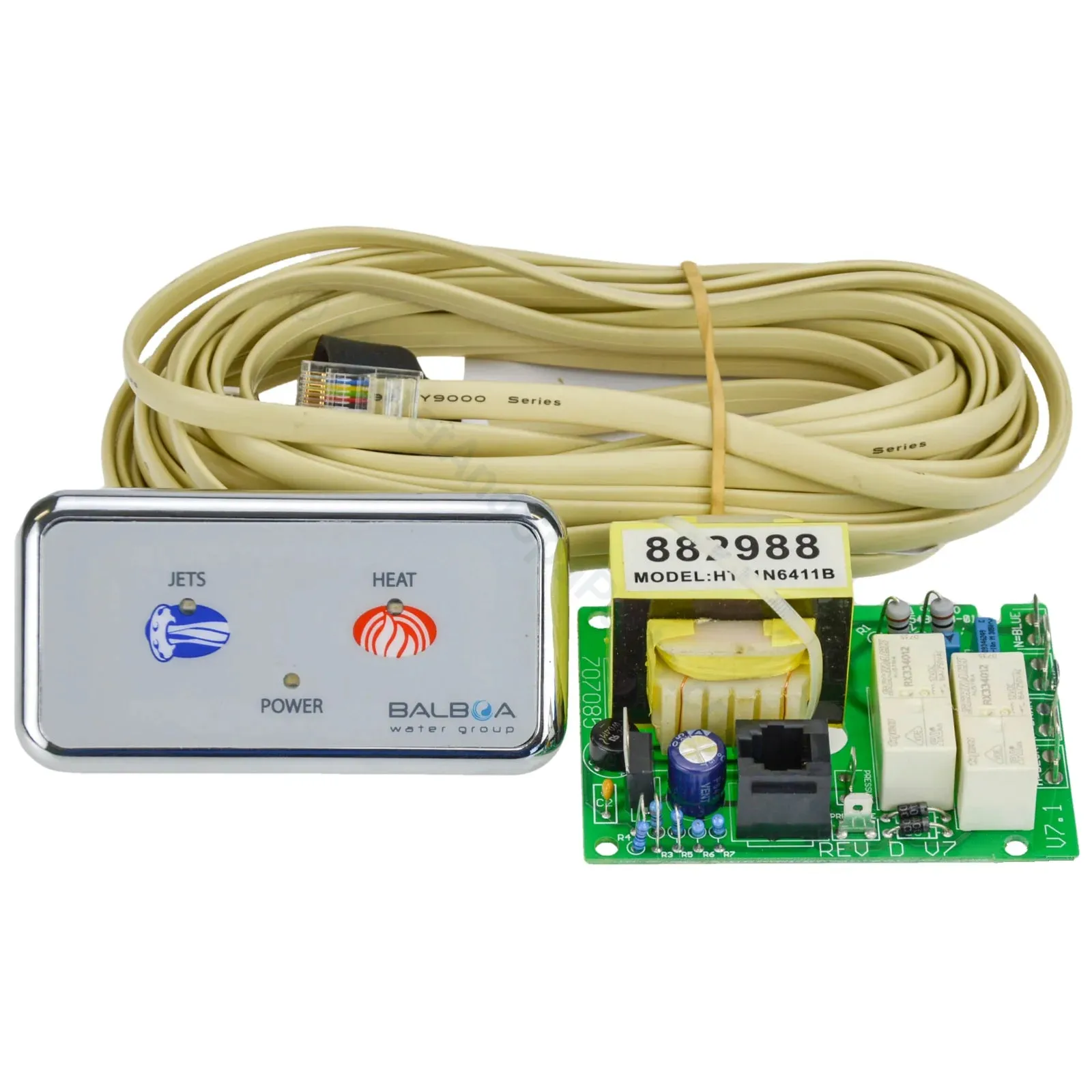

Includes new Circuit board & Touchpad. Please check pump version when choosing.
ALL Spa Pool Director, Turbo, Executive, Spa Engine and other touchpads are obsolete
Spa Bath Bathtronic and Bathmaster (v1) are obsolete. Bathmaster V2 & DR series available only
Bathtronic touchpads have buttons 45mm apart - Pump codes are 23x3, 2403
Power light offset to left, 4 pin connector
NOT AVAILABLE - Use Upgrade Kit
e
Bathmaster (v1) touchpads have buttons 17mm apart - Pump codes are 23x2, 2402
Power light on left side, 6 pin connector
NOT AVAILABLE- Use Upgrade Kit
Current Bathmaster V2 touchpads have buttons 36mm apart (18mm apart for Plus model - Pump codes are 23x4, 2404
Power light in centre, 8 pin connector (6 used)
If your spa bath has either Bathtronic or Bathmaster (v1) pump/touchpad fitted, you will need to upgrade to Bathmaster V2 using respective replacement kits listed below
