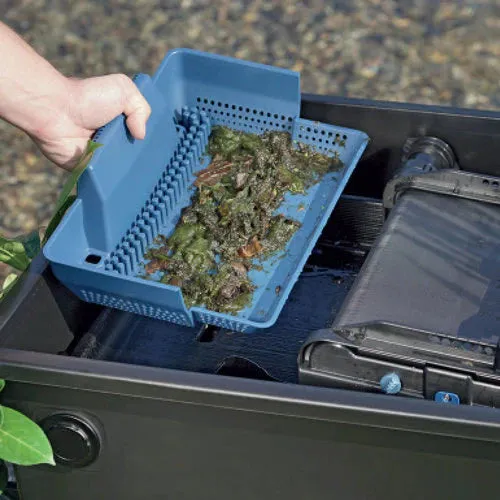

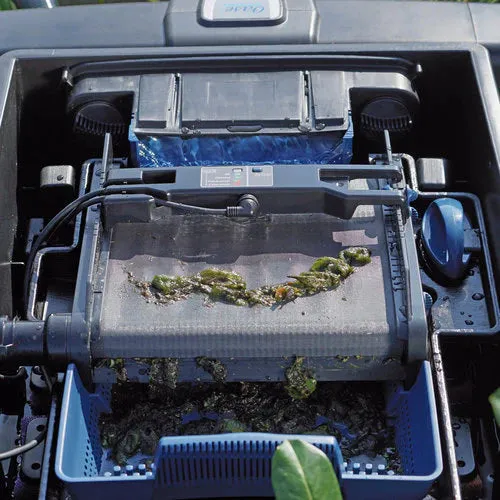

This advanced, innovative filter offers automatic debris separation using the self-cleaning screen, which separates coarse debris and deposits it in the cleaning tray for easy removal. The BioTec ScreenMatic2now has a double-sealed motor and a reinforced screen for an extended service life. The larger sludge basket has been redesigned for greater convenience in the collection and removal of large debris - resulting in reduced contamination of pond water it prevents sludge water from leaking back into the filter chamber. This filter is eco-friendly it provides a sizable surface for the settlement of beneficial bacteria. The BioTec ScreenMatic2boasts a bottom drain for easy flushing of the filter.

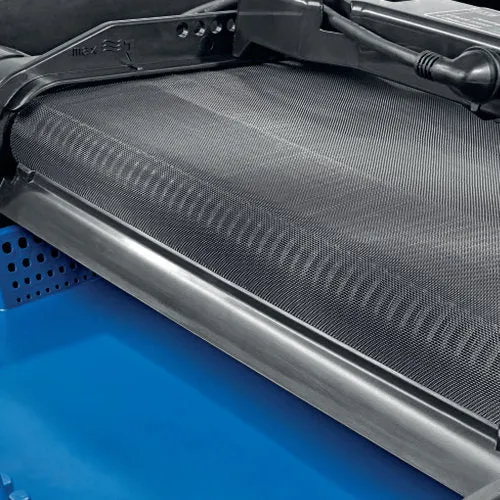

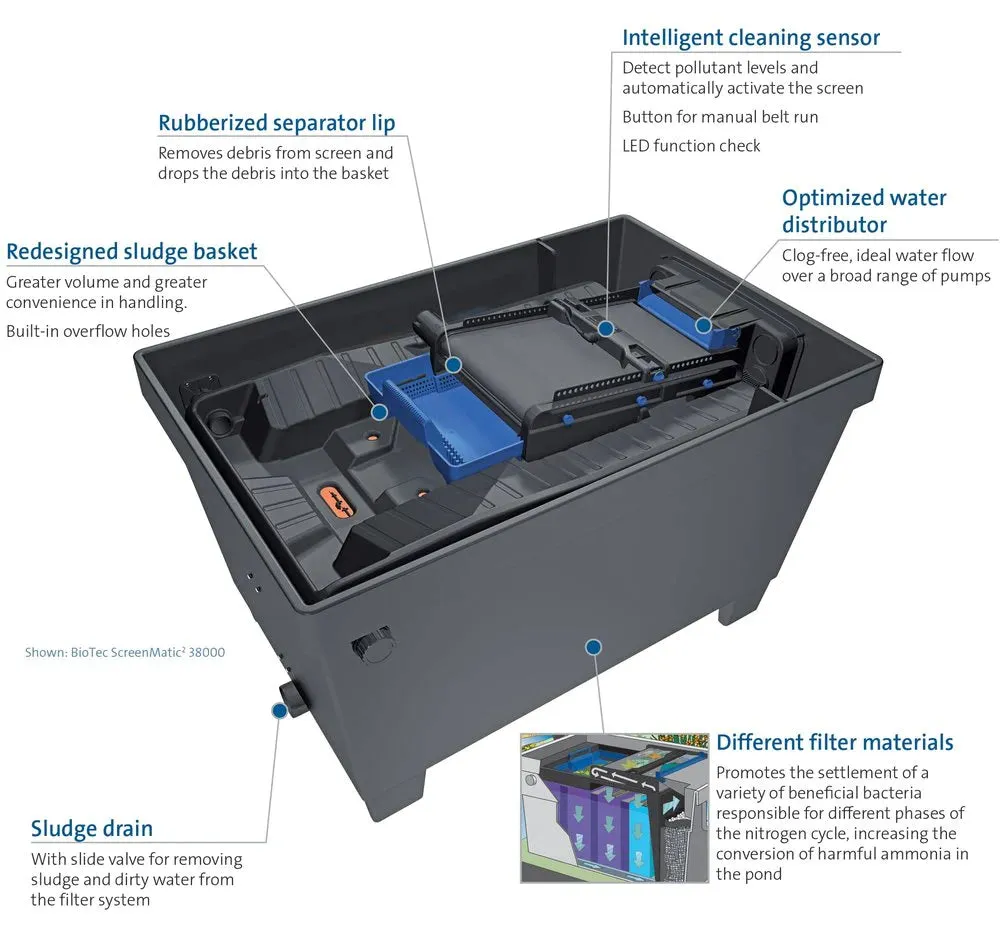

- Double-sealed motor and a reinforced screen for an extended service life;

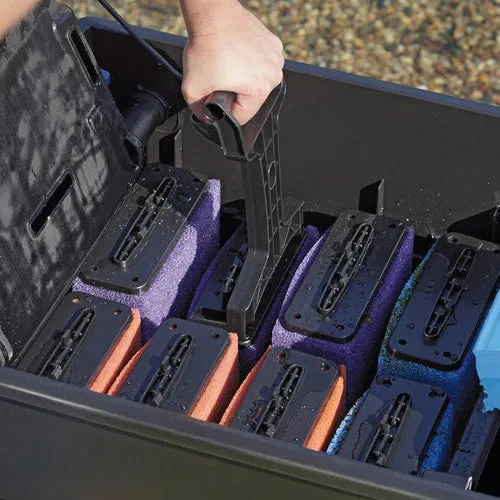

- New foam design and optimized water level control ensure longer filter service life, improved filtration, and reduced maintenance;
- Intelligent cleaning sensors w/LED indicator detect the pollutant level and automatically activate the screen;
- Optimized water distributors ensure an ideal water flow over a broad range of pumps- no clogging;
- Rubberized separator lip separates out large debris for better filtration;
- Includes a brush for easy cleaning of the belt filter;
- Features storm-safe fastening clips on each lid ensure safety during heavy winds;
- Limited Warranty: 3 years.
| Specs | BioTec Screenmatic2 18000 | BioTec Screenmatic2 24000 | BioTec Screenmatic2 38000 |
| Dimensions (L x W x H) | 31 x 23 x 21.5 in. | 31 x 23 x 25.4 in. | 47 x 31.5 x 30 in. |
| Rated Voltage (primary, secondary) | 120V / 60 Hz, 12V | ||
| Power Consumption | 5 watts | ||
| Cable Length 12V device | Transformer 7 ft. 16.4 ft. unit | ||
| Net weight | 55 lbs. | 66 lbs. | 209 lbs. |

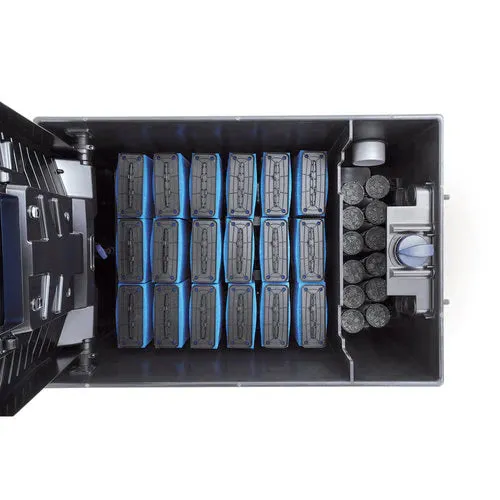

| No. of filter foams, total | 8 | 16 | 18 |
| No. of blue filter foams | 2 | 4 | 4 |
| No. of red filter foams | 3 | 6 | 7 |
| No. of purple filter foams | 3 | 6 | 7 |

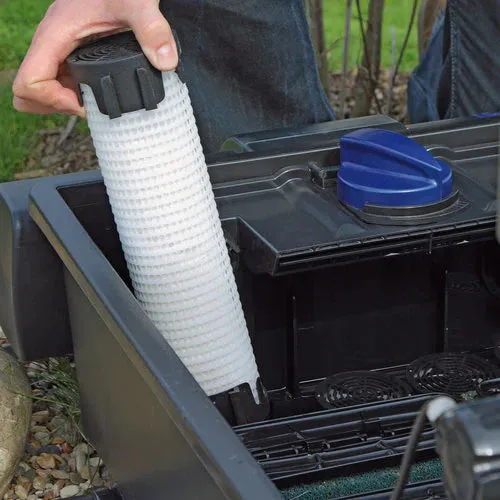

| Phosless filters | 2 units; 7.7 lbs. (3.85 lbs. each) | 4 units; 15.4 lbs. (3.85 lbs. each) | 12 units; 46.2 lbs. (3.85 lbs. each) |
| Coarse debris extraction by prefilter system | 300 micron | ||
| Min. Flow Rate | 1585 gph | 2113 gph | |
| Max. Flow Rate | 2900 gph | 3302 gph | 4623 gph |
| Outlet size | 3 in. with adaptor (DN 75) | 4 in. (DN 110) | |
| Inlet size | 1, 1.25, 1.5 in. | 1, 1.25, 1.5, 2 in. | |
| Sludge Drain Connection | 2 in. | 3 in. (DN 75) | |
| Suitable for ponds up to max. | 18000 gal | 24000 gal | 38000 gal |
| Suitable for ponds with fish stock | 9000 gal | 12000 gal | 19000 gal |
| Suitable for ponds with koi | 4500 gal | 6000 gal | 9500 gal |
| Warranty | 2 Years 1 with online registration | ||
| Downloads | & | ||
| Part Number | 42975 | 44120 | 42976 |
