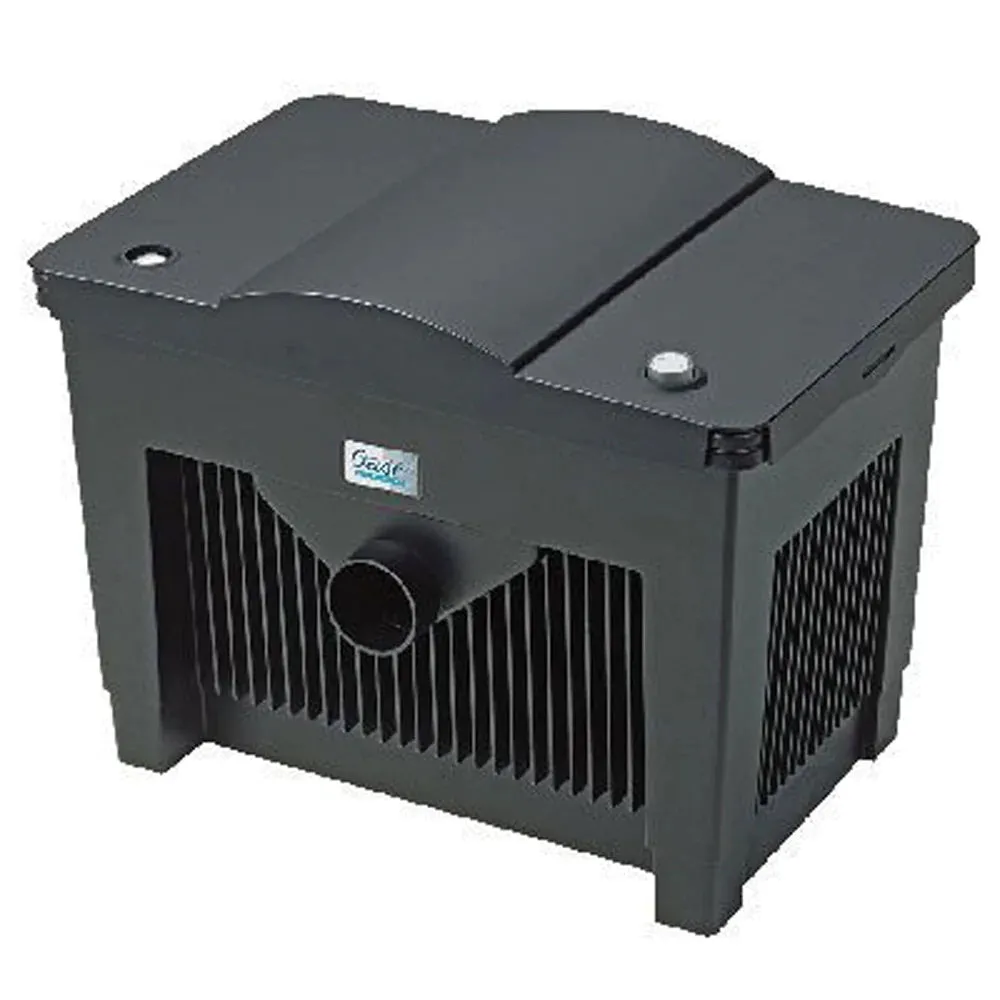

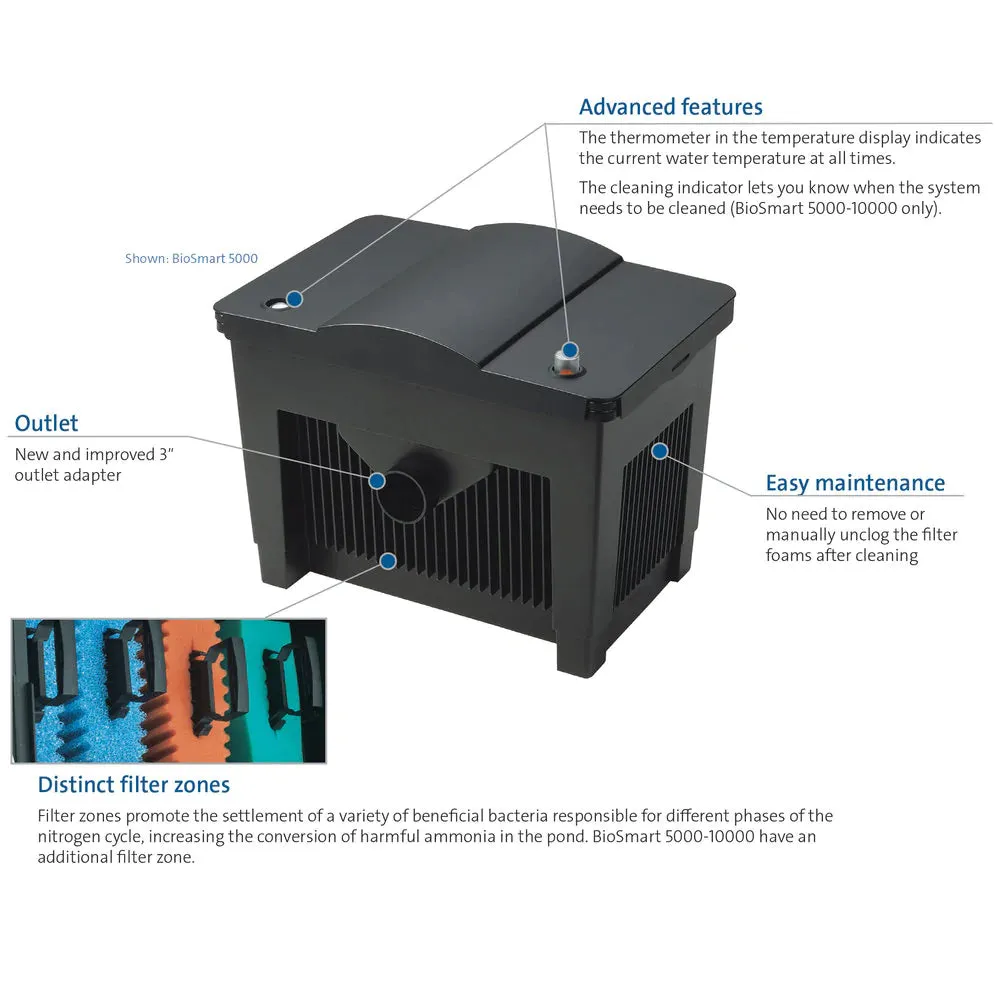

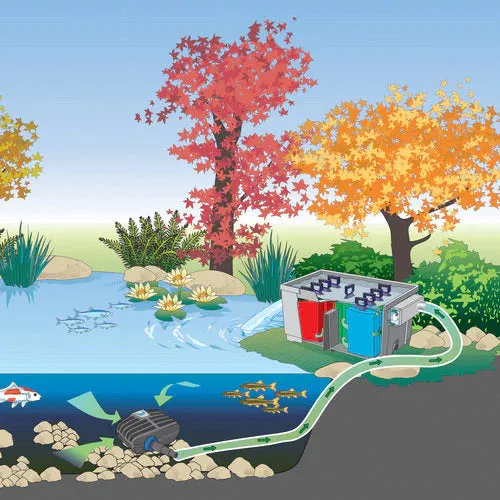

The unique design of the BioSmart water flow through filter collects debris at the filter bottom and reduces clogging of the foams. Any clogged-up foams can easily be freed up via the built-in cleaning mechanism, so there is no need to remove (and possibly damage) the filter foam from their mounts. It also makes filter maintenance fast and neat.
- Suitable for ponds up to 18m³;
- Additional oxygen enrichment through special water channelling;
- Cleaning handles for convenient maintenance;
- Including displays for pollutant level and water temperature;
- Sludge drain for easy removal of coarse debris;
- Easy to conceal; the filter can be recessed into the ground to 1/3 of its height;

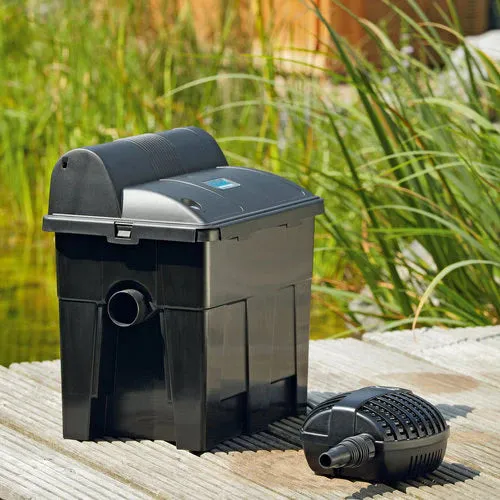

- Optimally matched to the OASE AquaMax filter and watercourse pumps;
- Limited Warranty: 3 years.

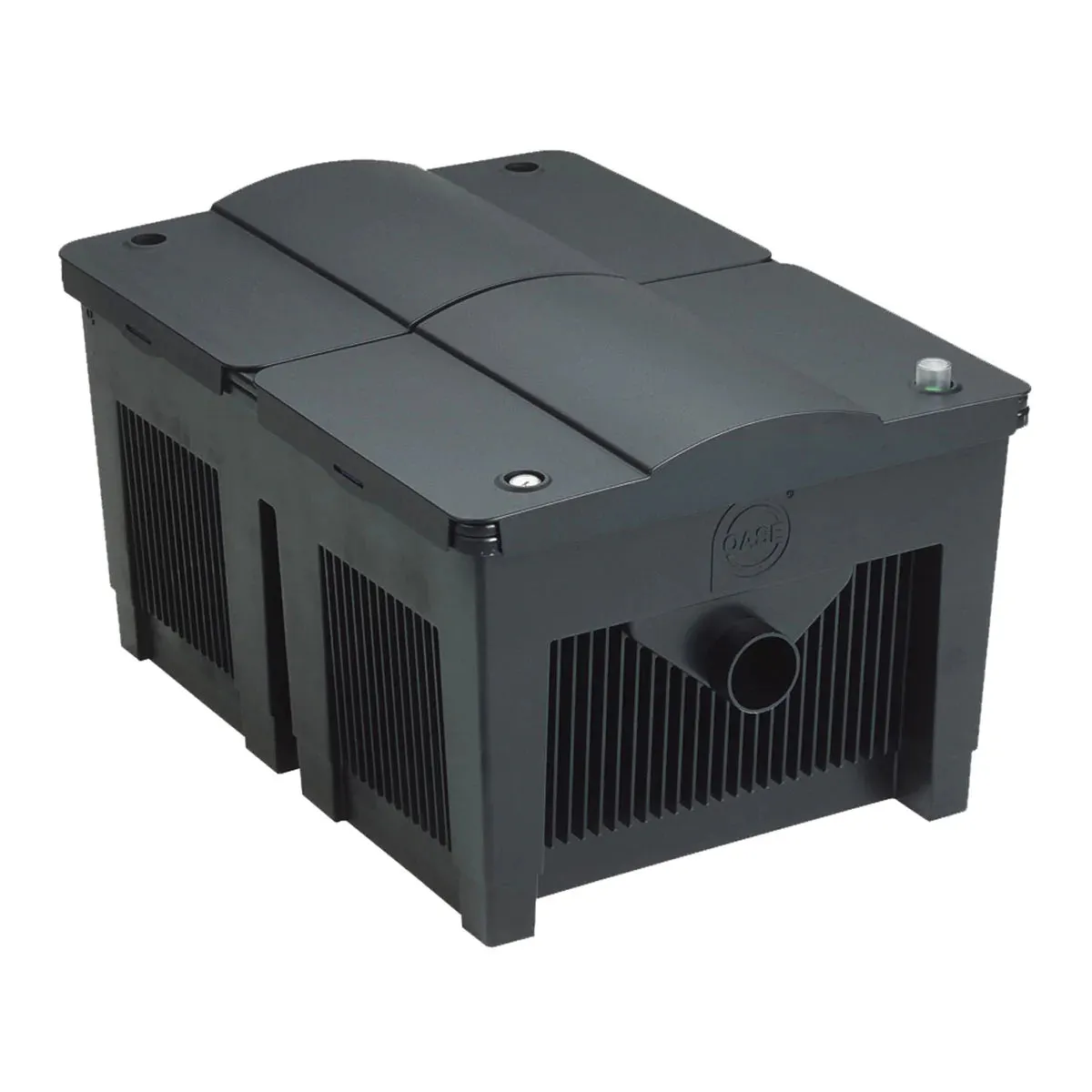

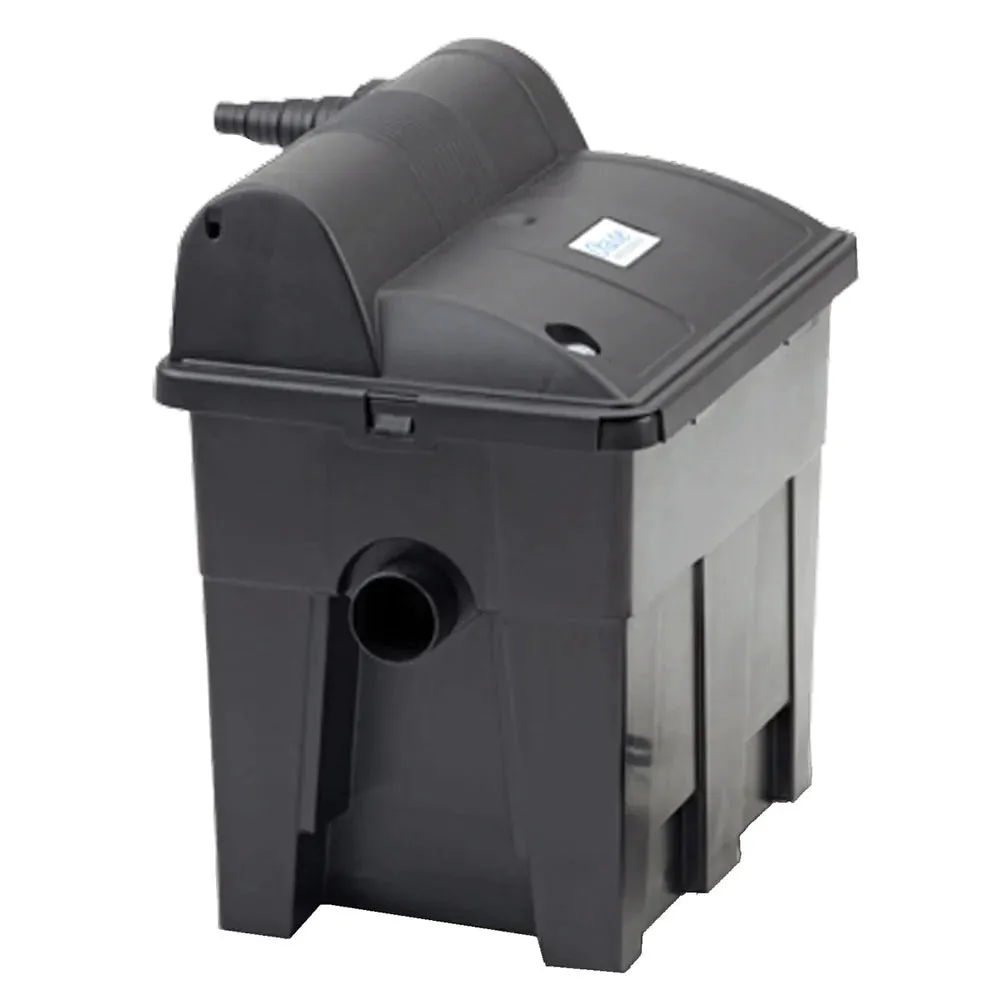

| Specs | BioSmart UVC 1600 | BioSmart 5000 | BioSmart 10000 |
| Dimensions | 11 x 14 x 16 in. | 22 x 22 x 16 in. | 30 x 22 x 16 in. |
| Rated Voltage | 110-120V / 60 Hz | - | |
| Power Consumption | 12 watts | - | |
| Power Cable Length | 10 ft. | - | |
| Net Weight | 12 lbs. | 12.1 lbs. | 24 lbs. |
| UVC Power | 9 watts | - | |

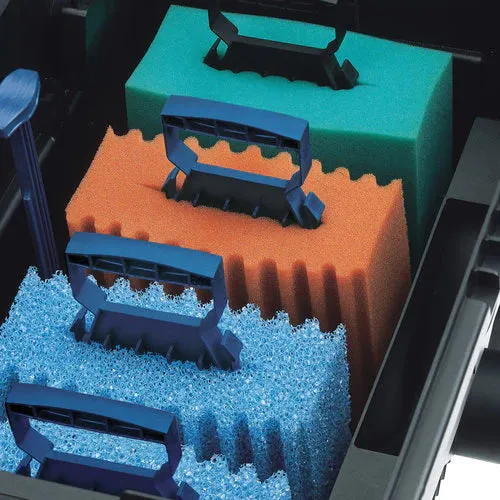

| No. of filter foams, total | 2 | 4 | 9 |
| No. of blue filter foams | 1 | 2 | 4 |
| No. of red filter foams | 1 | 4 | |
| No. of green filter foams | - | 1 | |
| Temperature display | Yes | ||
| Max. Flow Rate | 1200 gph | 1450 gph | 2110 gph |
| Outlet size | 2.5 and 3 in. adapter | ||
| Inlet size | 3/4 in. - 1.5 in. | ||
| Drain size | - | 2 in. | |
| Suitable for ponds up to max. | 1600 gal | 5000 gal | 10000 gal |
| Suitable for ponds with fish | 800 gal | 2500 gal | 5000 gal |
| Suitable for ponds with koi | 400 gal | 1250 gal | 2500 gal |
| Warranty | 1 Year | 3 Years | |
| Downloads | & | & | |
| Part Number | 40353 | 56929 | 56930 |
