COMMON APPLICATIONS

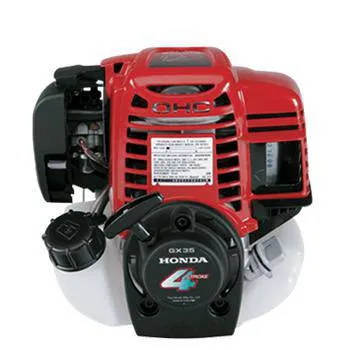

The gutsy, ultra-lightweight GX35 Mini 4-Stroke efficiently delivers the kind of powerful, quiet performance that you’d expect from a larger engine – but in a very compact package.
The GX35 is used by commercial gardeners and groundskeepers throughout New Zealand. It's and engine used to power many lawn & garden equipment. It's also well-known for powering Tillers/Cultivators, Water Pumps, Agricultural Equipment and Construction/Industrial Equipment.
ADVANCED TECHNOLOGY
The world's lightest OHC engine, the Honda Mini 4-stroke engine requires no fuel/oil mixing, and runs at approximately half the operating cost of comparable 2-stroke engines.
A full 360° 'any-side-up' operation allows you to use and store the GX35 in any position, taking advantage of the exclusive rotary-slinger lubrication system. The carburetor is equipped with an accelerator pump for fast, easy acceleration, and an efficient port configuration and large diameter valves maximise power output.
PROVEN RELIABILITY
An exhaust decompression system and unique low inertia design means the GX35 will start 'first time every time'.
Maintenance is made easy with an accessible spark plug and simple drainage and refilling of oil. High quality materials, fit, and finish ensure that your GX35 Mini 4-Stroke can be relied upon whenever you need it.
This product comes with a 2 year domestic warranty and with regular servicing by a Honda authorised dealer and using Genuine Honda Spare Parts it will work hard for many years.
| MODEL | GX35 |
| TYPE | 4-stroke, overhead cam, single-cylinder, horizontal shaft |
| BORE & STROKE | 39 x 30mm |
| DISPLACEMENT | 35.8cm3 |
| COMPRESSION RATIO | 8.0:1 |
| NET POWER | 1.0kW (1.3HP) at 7,000rpm |
| MAXIMUM NET TORQUE | 1.6 Nm (1.2 lbs ft) at 5,500rpm |
| IGNITION SYSTEM | Transistorised magneto ignition |
| STARTING SYSTEM | Recoil Starter |
| COOLING SYSTEM | Forced-air |
| PTO SHAFT ROTATION | Counter-clockwise (from P.T.O. side) |
| FUEL CONSUMPTION AT RATED POWER | 0.71 L/h at 7,000rpm |
| RECOMMENDED FUEL | Unleaded |
| LUBRICATION SYSTEM | Oil Mist |
| RECOMMENDED OIL | 10W/30 API SG |
| OIL CAPACITY | 0.1L |
| FUEL TANK CAPACITY | 0.65L |
| DIMENSIONS | 198 x 234 x 240mm |
| DRY WEIGHT | 3.33 kg (w/o clutch) |
